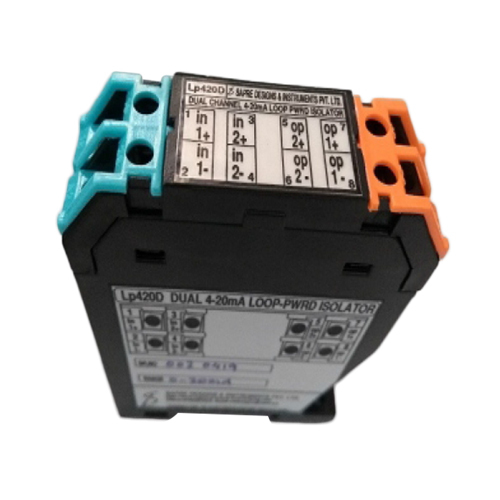

4 To 20mA 2-Wire Transmitter Isolator Din Rail

Name: 4 To 20mA 2-Wire Transmitter Isolator Din Rail
Brand: Sapre Designs & Instruments Pvt. Ltd.
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

4 To 20mA 2-Wire Transmitter Isolator Din Rail Specification

Application
Commercial

Protection Level
IP54

Output Type
Multiple

Color
Different Available

Warranty
Yes

4 To 20mA 2-Wire Transmitter Isolator Din Rail Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 4 To 20mA 2-Wire Transmitter Isolator Din Rail

A 4-20mA 2-wire transmitter isolator is a loop-powered, DIN rail-mounted device designed to isolate, convert, and filter analog signals between sensors and control systems (PLC/DCS). Operating on a passive 24VDC signal loop, it eliminates ground loops and protects equipment from surges without needing separate power supply wiring, featuring high linearity and 3KV isolation.

Key Features and Technical Specifications:

Loop-Powered (Passive): Draws power directly from the 4-20mA current loop, requiring no external power supply, which simplifies wiring.
Isolation Protection: Typically offers 3KVDC, 3KVAC, or 6KVDC isolation to break ground loops and reduce electromagnetic interference (EMI) between field instruments and control systems.
Input/Output: Designed for 4-20mA (or 0-20mA) inputs and outputs, acting as a signal repeater.
Mounting: Standard 35mm DIN rail mounting, often in compact, flame-retardant (UL94V-0) housings.
Accuracy: High precision (0.1% to 0.2% accuracy) and high linearity, with low input impedance (voltage drop <2V).
Environmental: Designed for harsh environments with a typical working temperature of -25C to +70C, and some up to -45C to +85C.

Typical Applications:

PLC/DCS Signal Isolation: Protecting PLC inputs from field noise.
Ground Loop Removal: Eliminating interference between sensors and remote instruments.
Signal Conversion/Distribution: Dividing or converting 2-wire transmitter signals.
Field Equipment Protection: Protecting equipment in industrial, mining, or marine applications.

Common Configurations:

Single Channel: Standard isolator.
Multi-Channel (e.g., 2-channel, 3-channel): Used to save space on the DIN rail.
Signal Splitters: One input to two isolated outputs.

Advanced Signal Isolation Technology

This transmitter isolator delivers robust galvanic isolation between input and output circuits, safeguarding sensitive equipment from ground loops and electrical noise. Its advanced engineering ensures stable and accurate signal transmission, crucial for precise process control in commercial applications.

Flexible Installation and Output Options

Designed for user convenience, the isolator accommodates a range of output types, making it suitable for integration into complex systems. The DIN rail mounting mechanism speeds up installation and maintains orderly control panel layouts, further enhancing operational efficiency.

FAQ's of 4 To 20mA 2-Wire Transmitter Isolator Din Rail:

Q: How does the 4 to 20mA 2-Wire Transmitter Isolator enhance system safety?

A: This isolator provides galvanic separation between input and output, effectively preventing ground loops and electrical interference. By isolating sensitive instrumentation, it enhances safety and reliability in commercial control systems.

Q: What types of outputs can this isolator support?

A: The isolator supports multiple output types, making it compatible with standard 4 to 20mA current loops commonly used in industrial automation and process control.

Q: When should I use a DIN rail transmitter isolator in my installation?

A: You should use a DIN rail transmitter isolator whenever signal integrity, noise immunity, or equipment protection is required-particularly in environments prone to electrical disturbances or where sensitive devices are interconnected.

Q: Where is this isolator commonly installed?

A: Typically, the isolator is installed within commercial control panels, thanks to its DIN rail mounting design, which suits various industrial and automation settings.

Q: What is the process for installing this isolator onto a DIN rail?

A: Simply align the isolator with the DIN rail and press it firmly until it locks into place. Ensure proper wiring according to the provided guidelines for safe and effective use.

Q: How is the warranty on this isolator beneficial to users?

A: The included warranty offers users peace of mind, assuring them of product reliability and providing support in case of manufacturing defects or performance issues.

Q: Why is IP54 protection significant for this transmitter isolator?

A: The IP54 protection level ensures resistance to dust and water splashes, extending the device's lifespan and maintaining dependable performance in challenging commercial environments.
