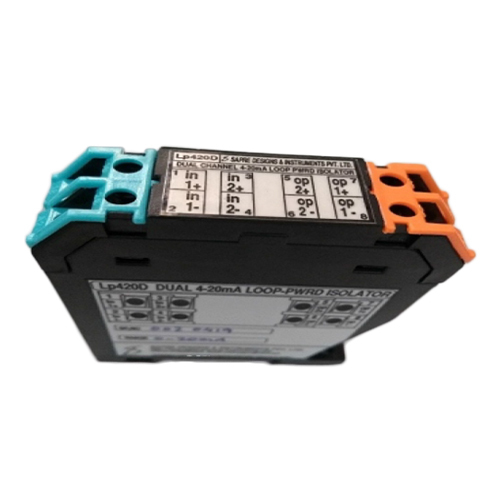

4 To 20mA Loop Powered Current Isolator For Din Rail

Name: 4 To 20mA Loop Powered Current Isolator For Din Rail
Brand: Sapre Designs & Instruments Pvt. Ltd.
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

4 To 20mA Loop Powered Current Isolator For Din Rail Specification

Application
Commercial

Protection Level
IP54

Output Type
Multiple

Color
Different Available

Warranty
Yes

4 To 20mA Loop Powered Current Isolator For Din Rail Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 4 To 20mA Loop Powered Current Isolator For Din Rail

A 4 to 20mA loop-powered DIN rail current isolator is a passive signal conditioning module that isolates input/output 4-20mA signals, preventing ground loops and protecting equipment without requiring external power. It draws power directly from the 4-20mA loop, offering galvanic isolation up to 3KVDC, a 1:1 signal ratio, high accuracy (0.1%), and a slim, DIN-rail-mounted design for industrial automation.

Key Features and Description

Loop Powered: Operates without an external power supply, deriving power from the input current signal.
Galvanic Isolation: Provides electrical separation (often 1500V to 3000V) between the input transmitter/field device and the output device (PLC/DCS), eliminating ground loop issues and protecting sensitive electronics.
DIN Rail Mounting: Typically 22.5mm or smaller thin-profile housing designed to mount on standard 35mm DIN rails (TS35).
High Accuracy & Linearity: Offers high accuracy, often 0.1% of span, with high linearity, ensuring precise 1:1 signal transmission.
Applications: Ideal for isolating sensors, PLC signals, chart recorders, and data loggers, especially in environments with high noise or different potential grounds.
Maintenance Free: No calibration or external power wiring is required.

Typical Specifications

Input/Output: 420 mA DC (2-wire), unipolar.
Accuracy:

Full Scale (FS) to

FS.
Isolation: 1.5 kV 3 kV DC.
Load resistance: Up to 1000

.
Response Time: Often

or

(depending on model).
Temperature Range: Typically

to

.

Enhanced Signal Integrity

This isolator plays a crucial role in commercial setups by preventing electrical interference and ground loops, resulting in accurate and stable signal transmission. It's ideal for environments where reliability and precision are paramount.

Flexible Installation and Output

Designed for easy DIN rail mounting, this isolator accommodates different installation spaces. With support for multiple output types and color options, it seamlessly integrates into various control panels and commercial equipment.

FAQ's of 4 To 20mA Loop Powered Current Isolator For Din Rail:

Q: How does the 4 to 20mA Loop Powered Current Isolator improve signal integrity in commercial systems?

A: The isolator eliminates ground loops and prevents electrical interference, ensuring that current signals are transmitted accurately and reliably between field instruments and controllers.

Q: What output types are supported by this current isolator?

A: This device supports multiple output types, allowing integration with various control and automation systems commonly used in commercial installations.

Q: When should I use a current isolator in my application?

A: You should use a current isolator when it is necessary to separate control circuits, prevent noise interference, or protect sensitive equipment from voltage spikes and ground potential differences.

Q: Where can this isolator be installed and what environments is it suitable for?

A: It is designed for DIN rail mounting, making it ideal for industrial and commercial panels. Its IP54 protection rating means it is suitable for environments with dust and occasional splashing water.

Q: What is the process for installing the current isolator?

A: Installation is straightforward: mount the isolator onto a DIN rail, connect the input and output wiring as per the supplied manual, and ensure it's securely housed inside the protective enclosure.

Q: How can using this current isolator benefit my commercial operation?

A: By providing signal isolation and protection against interference, this device improves measurement accuracy, reduces maintenance needs, and extends the lifespan of connected equipment.

Q: Is there a warranty and local support for this isolator in India?

A: Yes, the product comes with a warranty and is manufactured and supplied by reputable companies in India, ensuring reliable after-sales service and technical support.
