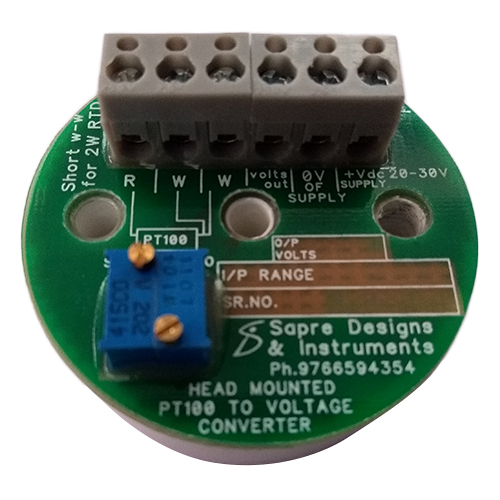

Head-Mounted RTD Pt100 to 0-10V Converter is a compact electronic module designed to convert variable resistance signals from a Pt100 sensor into a linear 0-10V voltage output, typically and mounted directly inside a sensor connection head. It provides high precision (often

span), low-noise transmission, and linear temperature output to PLCs and DCS systems, powered by 24V DC.

• Form Factor: Miniature design fits standard sensor connection heads (e.g., DIN Form B), providing a compact solution for temperature monitoring.
• Input & Accuracy: Specifically designed for 3-wire or 2-wire Pt100 RTD inputs (typically


  at


  ), offering high accuracy and stability over varied ambient temperatures.
• Output Signal: Converts to a high-level 0-10V output (with some models allowing 0-5V or 4-20mA), which is ideal for reducing noise interference in long-distance cabling.
• Performance: Features built-in lead-wire compensation (eliminating error from long sensor wires) and non-linearity correction for the RTD.
• Construction: Often features full epoxy encapsulation, providing superior mechanical stability, vibration resistance, and moisture protection (IP rating).
• Adjustability: Many models include non-interacting zero and span potentiometers for easy calibration.



• Sensor Input: Pt100 RTD (2-wire, 3-wire)
• Output: 0-10V DC
• Power Supply: Standard 24V DC
• Accuracy:


  to


  of span
• Operating Temp: Industrial range
• Protection: IP54 or IP65 (depending on housing)



• Temperature measurement in automation and process control systems.
• Industrial, commercial, and HVAC environmental monitoring.
• Interfacing RTD sensors directly with PLC/DCS input modules.
