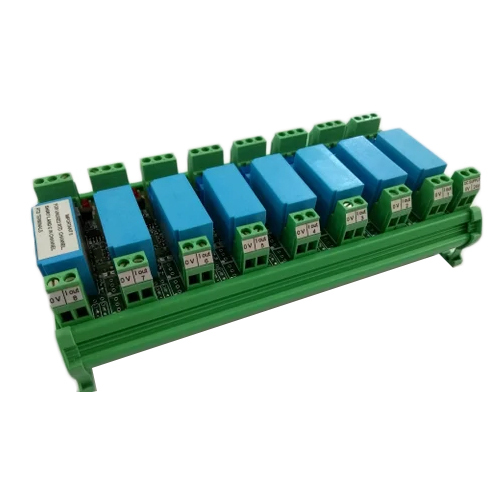

8 Channel 4-20mA Isolator

Name: 8 Channel 4-20mA Isolator
Brand: Sapre Designs & Instruments Pvt. Ltd.
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

8 Channel 4-20mA Isolator Specification

Application
Commercial

Protection Level
IP54

Output Type
Multiple

Color
Different Available

Warranty
Yes

8 Channel 4-20mA Isolator Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 8 Channel 4-20mA Isolator

An 8-channel 4-20mA isolator is a DIN-rail mounted industrial module designed to electrically separate (isolate) eight independent 4-20mA current loop signals, protecting sensitive instrumentation from ground loops, voltage surges, and EMI. It provides high-accuracy, 2kV-3kV galvanic isolation between input, output, and power, ensuring signal integrity in process control systems.

Key Features and Description

Channels: 8 independent channels in one compact module, often DIN-rail mounted.
Input/Output: Accepts 0/4-20mA inputs and provides 0/4-20mA isolated outputs to PLC or DCS systems.
Isolation: Typically provides 2 kV to 3 kV RMS galvanic isolation between field inputs, output loops, and power supply.
Power: Usually powered by a 24V DC panel supply.
Signal Type Compatibility: Supports 2-wire and 4-wire transmitters, often with loop-powered capabilities for field devices.
Accuracy: High-accuracy signal transfer (often

or better) with low temperature drift.
Protection: Features reverse polarity protection and, in many cases, protection against hazardous voltage interference.

Common Applications

Preventing ground loops in distributed control systems (DCS).
Protecting PLCs and PLC I/O cards from voltage surges.
Signal splitting and conditioning for local and main control rooms.
Industrial automation and process control in harsh electrical environments.

Enhance System Reliability with Isolation

The 8 Channel 4-20mA Isolator excels in isolating analog signals, minimizing interference and ground loop issues. Suitable for commercial setups, it allows precise signal transmission and equipment safety in varied environmental conditions. Its IP54-rated protection ensures consistent performance, making it an essential component for reliable system operation.

Versatile Output and Flexible Integration

Designed with multiple output types, the isolator provides compatibility across various industrial and commercial systems. Available in different colors to suit application preferences, this device enables seamless integration, helping businesses tailor their automation infrastructure to specific needs.

FAQ's of 8 Channel 4-20mA Isolator:

Q: How does the 8 Channel 4-20mA Isolator improve system safety in commercial settings?

A: This isolator enhances safety by providing electrical isolation between input and output signals, reducing risks of ground loops, surges, and interference within commercial automation systems.

Q: What output types are supported by this isolator?

A: The device supports multiple output types, ensuring compatibility with a broad range of industrial and process automation equipment.

Q: When should I consider installing a signal isolator in my system?

A: Signal isolators should be used whenever you need to protect sensitive devices from electrical noise, prevent data inaccuracies, or safeguard against potential grounding issues in commercial automation networks.

Q: Where can this isolator be utilized within a commercial facility?

A: This isolator is ideal for integration into control panels, PLC systems, and data acquisition setups found in manufacturing, HVAC, and building automation environments.

Q: What is the process for installing the 8 Channel 4-20mA Isolator?

A: Installation involves securing the device in a suitable control cabinet, connecting wiring as per the user manual, and ensuring correct input/output configuration to maintain electrical isolation and signal integrity.

Q: How is the product protected against environmental factors?

A: The isolator features an IP54 protection level, safeguarding it against dust ingress and splashing water, thus ensuring reliable operation in commercial environments.

Q: What benefits does the warranty provide for this product?

A: The warranty offers peace of mind by covering manufacturing defects, ensuring reliable support and continued optimal performance for a specified period.
