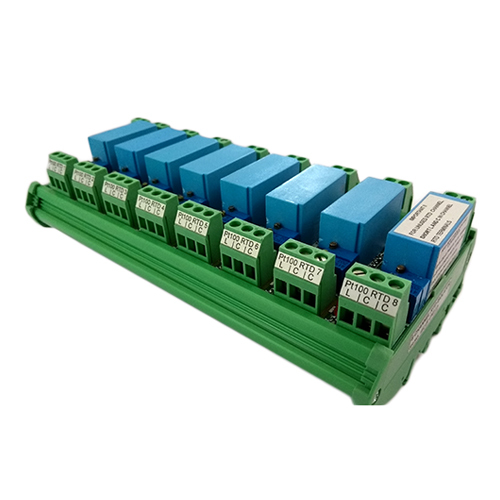

8 Channel RTD Isolator

Name: 8 Channel RTD Isolator
Brand: Sapre Designs & Instruments Pvt. Ltd.
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

8 Channel RTD Isolator Specification

Application
Commercial

Protection Level
IP54

Output Type
Multiple

Color
Different Available

Warranty
Yes

8 Channel RTD Isolator Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 8 Channel RTD Isolator

An 8-channel RTD isolator is a high-density, DIN-rail mounted signal conditioning module designed to accept eight separate RTD (typically Pt100) inputs and convert them into isolated 4-20mA or voltage signals. It provides 1.5kV to 2kV galvanic isolation between input, output, and power supply, ensuring signal integrity, eliminating ground loops, and protecting sensitive DCS/PLC systems.

Key Features and Description

High Density: Eight independent channels in a single, compact module (often 183mm x 90mm), reducing panel space.
Isolation & Protection: Offers 1.5kV2kV galvanic isolation to prevent interference and protect costly I/O circuitry from hazardous voltage spikes.
Input/Output: Accepts 3-wire Pt-100 RTD inputs; outputs are typically selectable (4-20mA or 0-10V).
Performance: High accuracy, low-error signal transfer, and low coupling capacitance (often 15pF).
Application: Ideal for industrial, commercial applications, and automation systems requiring reliable temperature monitoring from sensors to controllers.

Technical Specifications (Typical)

Input Type: Pt100 RTD (3-wire).
Output Signal: 4-20mA, 0-5V, or 0-10V.
Isolation: 1.5kV to 2kV.
Accuracy:

0.1%.
Power Supply: 24V DC.
Mounting: DIN Rail.

Robust Signal Isolation

Ensure accurate temperature readings with the 8 Channel RTD Isolator. It effectively separates measurement and control signals, minimizing interference for dependable operation in commercial settings.

Enhanced Durability and Protection

With its IP54-rated enclosure, this isolator is built to withstand challenging environments. Dust and water splashes are no match for its rugged construction, making it ideal for use in a range of industrial applications.

Versatile Output and Application

The device offers multiple output types, ensuring seamless integration with different control systems. Its adaptable nature makes it a practical solution for commercial temperature monitoring needs.

FAQ's of 8 Channel RTD Isolator:

Q: How should I install the 8 Channel RTD Isolator in a commercial environment?

A: Installation should be performed by a qualified technician, following the manufacturer's instructions. Ensure the device is positioned in a location consistent with its IP54 rating to avoid exposure to extreme conditions beyond dust and splashes.

Q: What are the main applications for this RTD isolator?

A: The 8 Channel RTD Isolator is primarily used in commercial and industrial settings for accurate temperature signal isolation, control system integration, and protection of sensitive equipment from electrical interference.

Q: When will maintenance be required for the RTD Isolator?

A: Routine maintenance should be conducted as per the manufacturer's guidelines, typically every 6-12 months, or sooner if used in particularly harsh environments, to ensure optimal performance and longevity.

Q: Where can I purchase the 8 Channel RTD Isolator in India?

A: This product is available through authorized manufacturers and suppliers across India. You can contact official distributors for more information regarding availability and support.

Q: What is the process for claiming the warranty?

A: To claim the warranty, retain your purchase documents and contact the manufacturer or supplier where you bought the isolator. They will guide you through the process, including diagnosis and any repair or replacement procedures.

Q: How is the isolator beneficial to commercial operations?

A: The RTD Isolator enhances operational reliability by delivering precise and interference-free temperature measurements, protecting both the monitoring instrument and control system, thus reducing downtime and increasing productivity.
