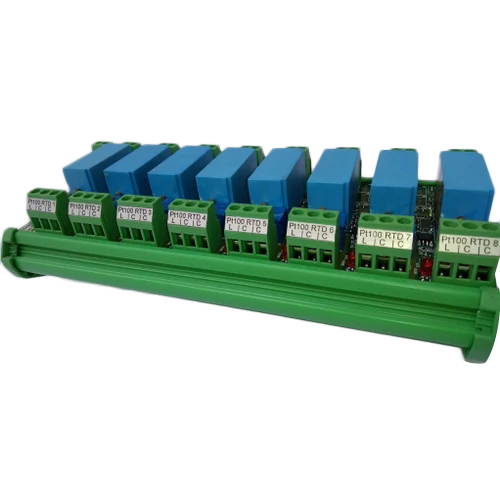

8 Channel RTD PT100 Isolator

Name: 8 Channel RTD PT100 Isolator
Brand: Sapre Designs & Instruments Pvt. Ltd.
Price: 8000.0 INR
Availability: InStock

Price 8000.0 INR/ Unit

Get a Price/Quote

MOQ : 10 Units

8 Channel RTD PT100 Isolator Specification

Application
Commercial

Protection Level
IP54

Output Type
Multiple

Color
Different Available

Warranty
Yes

8 Channel RTD PT100 Isolator Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 8 Channel RTD PT100 Isolator

An 8-channel RTD PT100 isolator is a DIN-rail mounted signal conditioning module that accepts eight separate 2, 3, or 4-wire Pt100 temperature sensor inputs and converts them into isolated, linear 4-20mA or voltage outputs. It provides strong galvanic isolation (often up to 1.5kV3kV) between input, output, and power supply, protecting PLC/DCS systems from field interference.

Key Features and Specifications

Input: 8 independent RTD PT100 channels.
Output: 8 Corresponding isolated 4-20mA, 0-5V, or 0-10V signals.
Isolation: 1.5kV to 3kV galvanic isolation, providing protection against ground loops and noise.
Accuracy: High-accuracy linear conversion, typically around 0.1%0.2%.
Power Supply: Generally 24V DC.
Construction: Compact design suitable for mounting on 35mm DIN rails.
Applications: Industrial process control, temperature monitoring (HVAC, machinery), and DCS/PLC interfacing.

These units, commonly found from suppliers Sapre Designs or similar companies on IndiaMART, are essential for ensuring stable, accurate, and noise-free temperature measurements in crowded industrial automation cabinets.

Advanced Multi-Channel Temperature Isolation

This RTD PT100 isolator enables the connection of up to eight sensors, providing simultaneous temperature monitoring across various points. With multiple output options, it easily interfaces with diverse control systems, contributing to improved process automation and operational accuracy. Its IP54 rating protects internal components, making it suitable for commercial and light-industrial settings.

Durable and Customizable Design

Encased in a robust housing and available in different colors, this isolator blends functionality with aesthetic versatility. Its sturdy build resists environmental challenges, while its customization options allow it to meet specific application requirements. The included warranty underscores its reliability and long-term value.

FAQ's of 8 Channel RTD PT100 Isolator:

Q: How is the 8 Channel RTD PT100 Isolator typically installed in commercial applications?

A: Installation is straightforward; the device is designed to be mounted within electrical panels or enclosures in commercial settings. Wiring instructions and terminal details are provided in the user manual to ensure secure and correct setup.

Q: What are the main benefits of using a multiple-output RTD isolator?

A: Multiple outputs allow the isolator to transmit sensor readings to various devices or systems simultaneously, enhancing flexibility in integrating with SCADA, PLCs, and other instrumentation. It also provides electrical isolation, protecting both the sensors and receiving devices from interference or faults.

Q: When should I choose a PT100 isolator with IP54 protection?

A: An IP54-rated isolator is ideal when your environment may involve moderate dust or water exposure, such as commercial workshops, processing rooms, or manufacturing lines. This protection level ensures reliable performance where complete sealing is not required but basic ingress defense is necessary.

Q: Where can this product be sourced in India?

A: The 8 Channel RTD PT100 Isolator is available directly from the manufacturer or various accredited suppliers throughout India. Customers can inquire or place orders via the manufacturer's website or through authorized dealers nationwide.

Q: What is the process for warranty and after-sales support?

A: Warranty details are provided at purchase, typically covering material and manufacturing defects. For support, users can contact the manufacturer or supplier, who will guide them through troubleshooting, repair, or replacement procedures as per warranty terms.

Q: How does electrical isolation benefit RTD measurement in commercial setups?

A: Electrical isolation prevents ground loops and minimizes interference between the sensor circuits and receiving equipment. This leads to more accurate readings and reduces the risk of damage to both sensors and connected devices, making the system safer and more reliable.
